Check out the new Triango
Slow down to admire it.

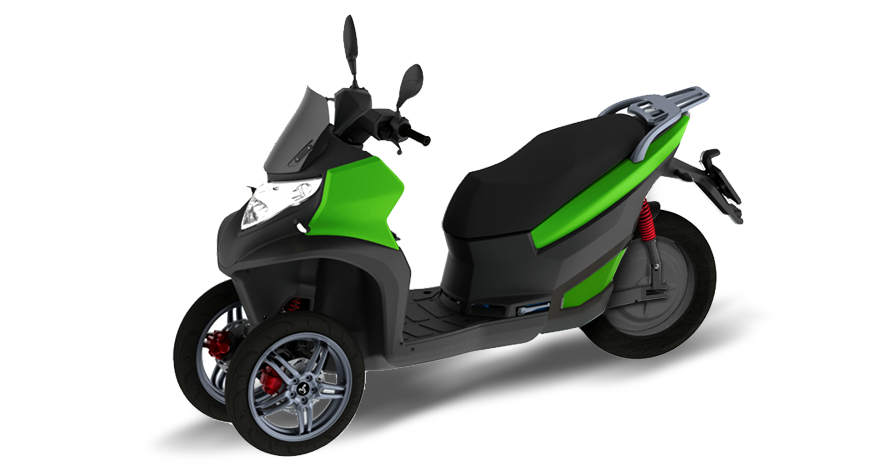

e-TRIANGO

New e-TRIANGO model is safe for you and for the environment. It is equipped with two removable Li-ion batteries that give 100 km range on single charge. Powerful and efficient electric motor combined with brake energy recovery system ensures the best performance.

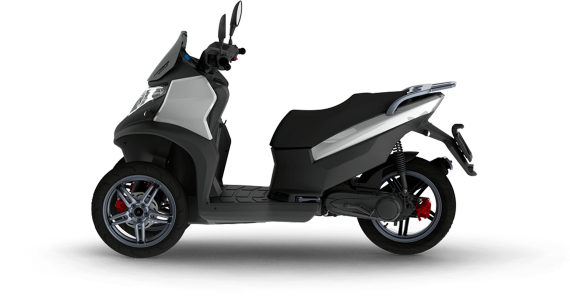

Riding position

A natural, most ergonomic riding position gives comfort even on the longest journey.
The flat floor gives a wide degree of freedom for feet placement and getting on and off the machine. Wide front covers provides excellent protection against rain while driving.

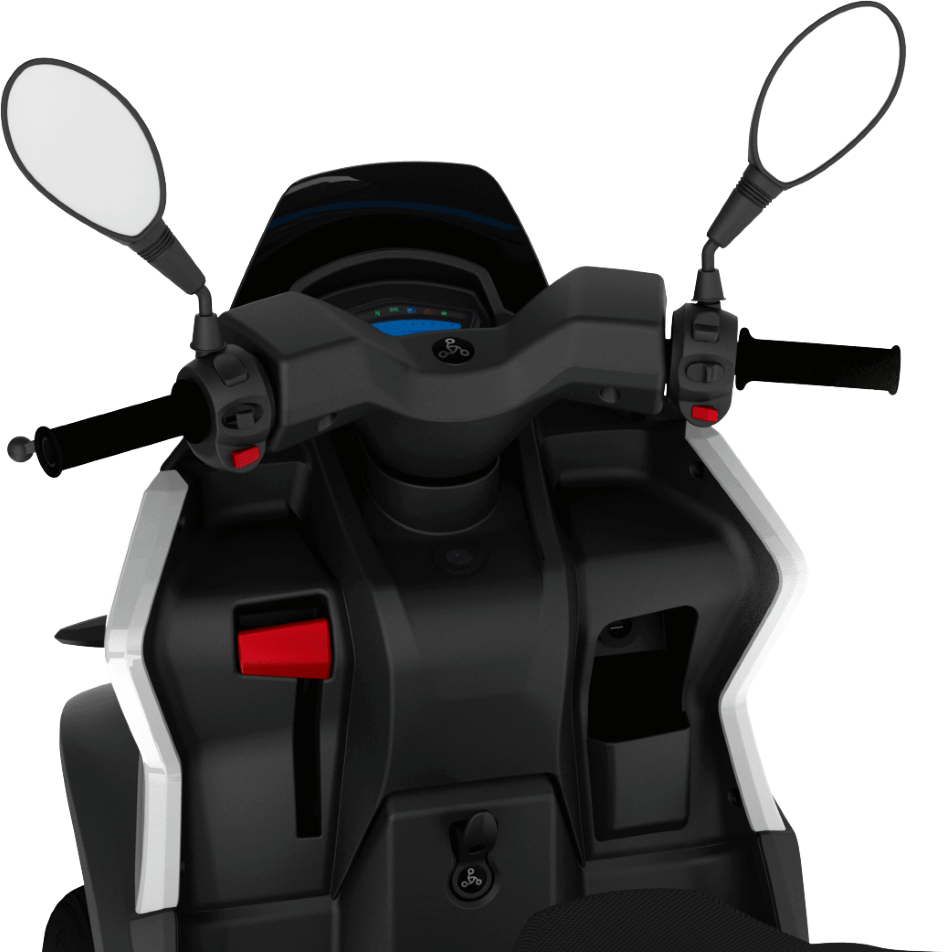

TiLaBS

The lever on the left side controls the TiLaBS (Tilt Lock and Brake System).


Pull the lever half way and lock the scooter in an upright position without stands, pull it all the way and turn on the parking brake.
Besides the large trunk located under the two-place seat there is a storage unit with two USB plugs on your right-hand side.

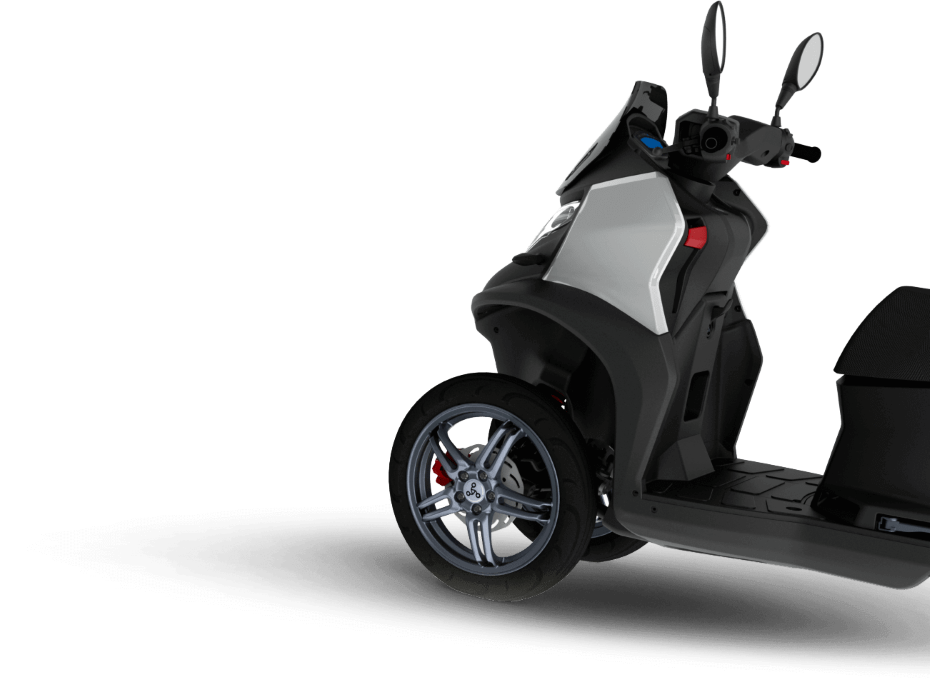

Safety

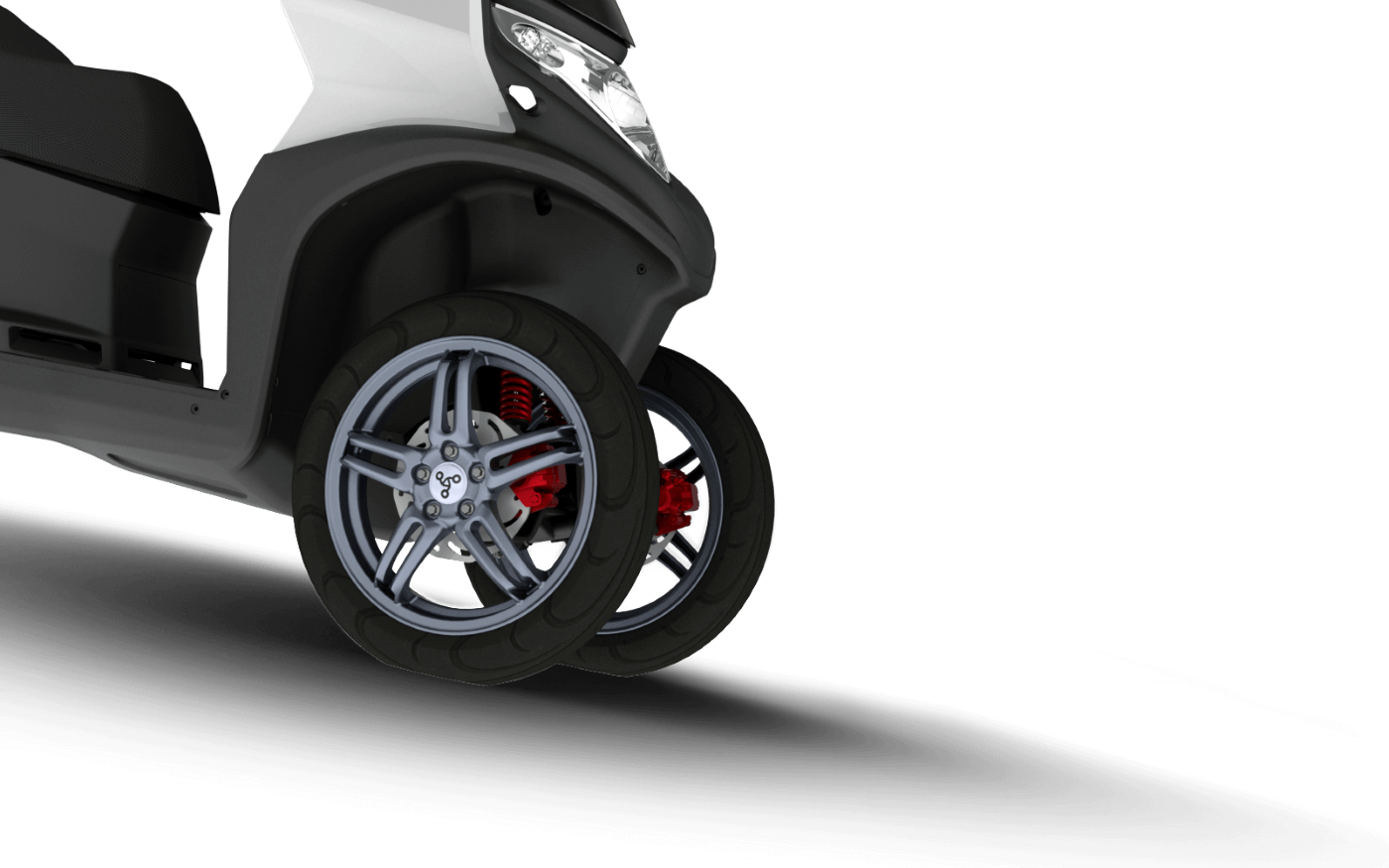

With its two wheels on the front Triango has more grip and brakes twice better. This gives you more control and stability when riding, even in the toughest weather conditions like rain, or even snow.

Innovation

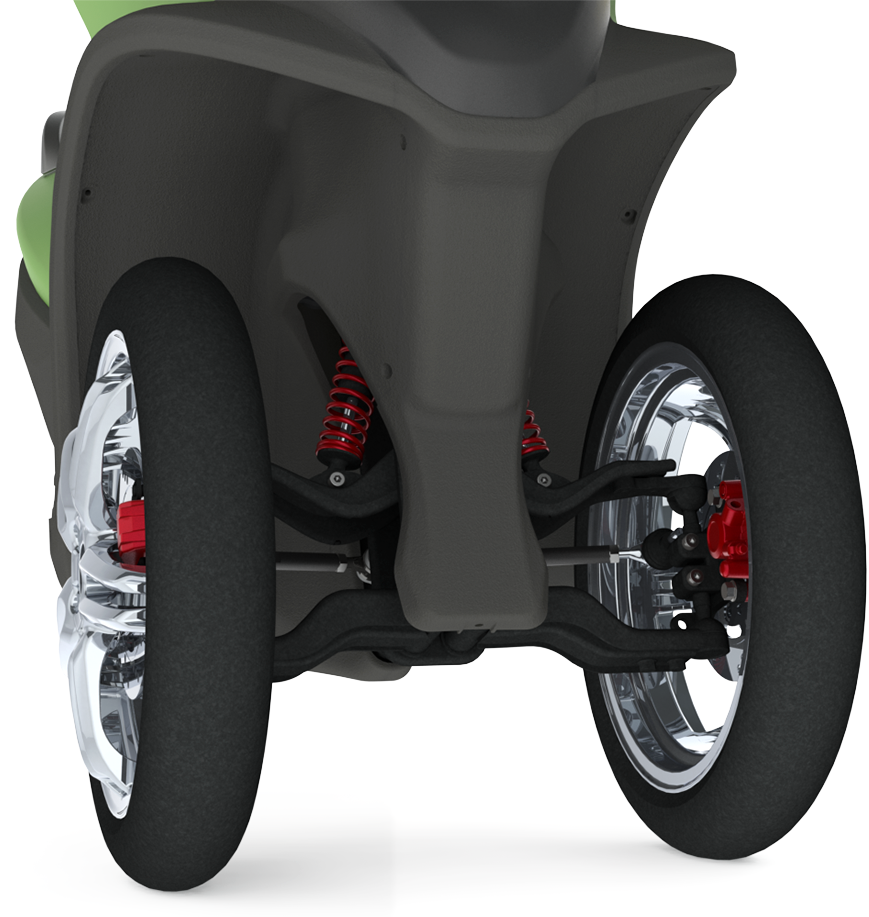

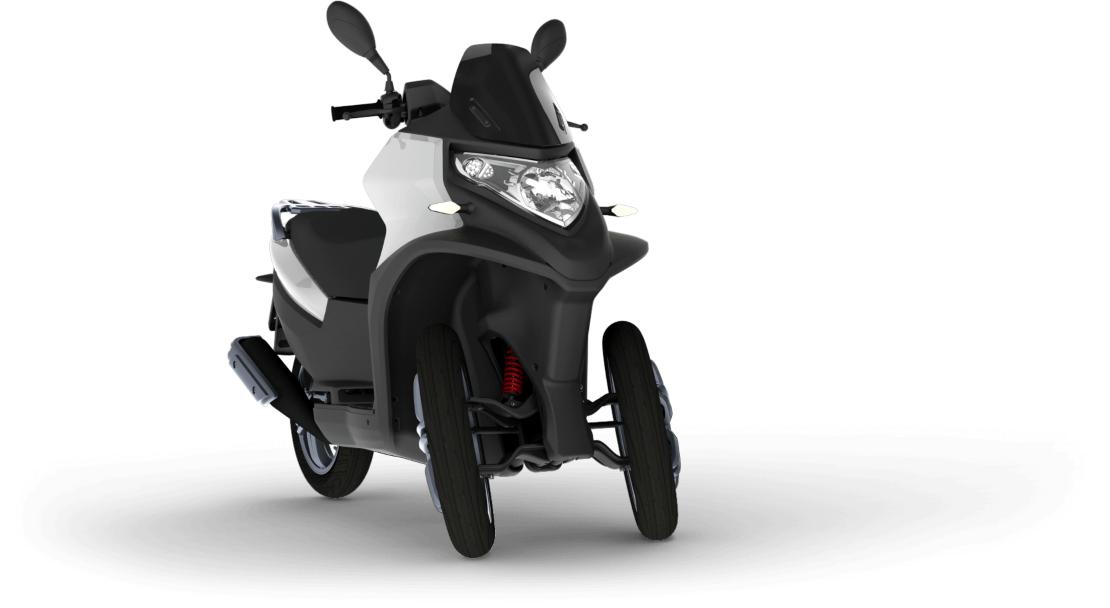

The main technical asset of the Triango family is its patented Triango Arch Tilting System (TATS).
It offers excellent agility while being compact and lightweight. This allows a much smoother ride, even on a bumpy or rough road, due to the fact that the suspension system has much more give to it.

Triango 50
Triango 50

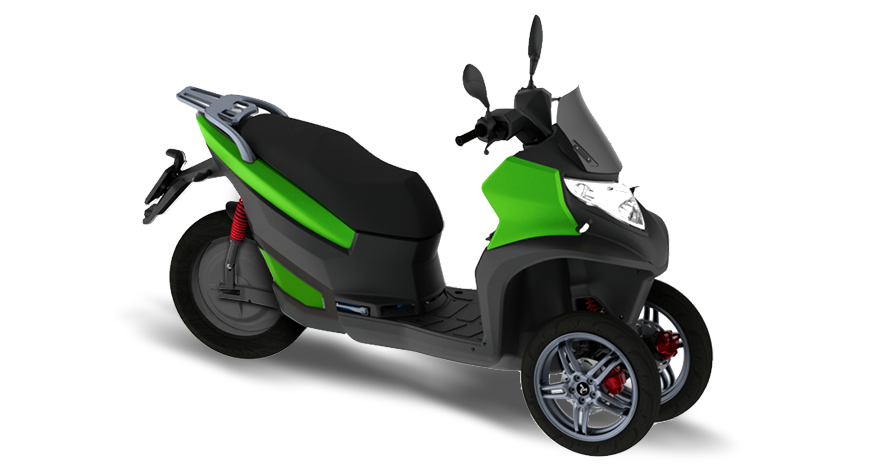

e-Triango
e-Triango
Triango 150
Triango 150

Specification


Triango ElectricTriango 50Triango 150
Length1995mm1995mm1995mm
Width652mm652mm652mm
Height1172mm1172mm1172mm
Wheel base1400mm1450mm1490mm
Net Weight110 kg (Front:60kg Rear:50kg)120 kg (Front:60kg Rear:60kg)160 kg (Front:75kg Rear:85kg)
ModelElectricSingle cylinder, 2-stroke, air cooled, carburetorSigle,4 valves,4 stroke, water cooled, OHC
Maximum speed45 km/h / 80 km/h45 km/h110 km/h
Range~80 km~140km~180km
Motor power2kW / 3kW--
Maximum power4kW / 6.7kW--
Maximum torque110Nm / 190Nm--
Battery capacity3200 Wh--
Battery voltage72V--
Fuel required-Unleaded gasolineUnleaded gasoline
Displacement-50cc150cc
Compression ratio-6.9:111.0:1
Maximum-3.2kW / 7500rpm10.8kW / 8000rpm
Maximum torque-4.5Nm / 6500rpm13.8Nm / 6000rpm
Starting methods-Kick & electrical starterElectrical starter
Front shock absorberT.A.T.ST.A.T.ST.A.T.S
Rear shock absorberSpring shock absorberSpring shock absorberSpring shock absorber
Clutch type-C.V.TC.V.T
Transmission-BELTBELT
Front tire80/80-1480/80-1480-90/80-14
Rear tire100/90-14100/90-14130/70-13
Front brakeFR: 2x disc 210mmFR: 2x disc 210mmFR: 2x disc 210mm
Rear / Parking brakeRR: disc 220mmRR:disc 220mmRR:disc 220mm
Head lamp(high, low)12V 35/35W12V 35/35W12V 35/35W
Front/ Rear direction indicatorLEDLEDLED
Rear position lamp/Stop lampLEDLEDLED
Engine oil capacity-700ml950ml
Transmission oil capacity-140ml200ml
Fuel tank capacity-6l6l
Battery capacity-12V 8Ah (closed type, maintenance-free)12V 12Ah (closed type, maintenance-free)
Parking BrakeYesYesYes
CBS braking systemNoNoYes
Roll lockYesYesYes
GPS tracking systemOptionalOptionalOptional
